What is Polyphenylene Sulfide (PPS)?
Polyphenylene sulfide (PPS) is a type of polymer that is made from monomers called phenylenes and sulfides. It is a semi-crystalline thermoplastic that has excellent mechanical and thermal properties, making it suitable for use in a wide range of applications.
PPS - Key Properties
PPS is known for its high strength, high modulus of elasticity, and good fatigue resistance, making it a popular choice for use in structural applications where high strength and stiffness are required. It has a tensile strength that is like that of polycarbonate, and a modulus of elasticity that is similar to that of polyphenylene oxide (PPO).
In addition to its excellent mechanical properties, PPS has excellent thermal stability and high temperature resistance. It can withstand temperatures up to 240°C (464°F) continuously and up to 260°C (500°F) for short periods of time, making it suitable for use in high temperature applications. It also has good chemical resistance and is resistant to a wide range of chemicals, including fuels, oils, and acids.
PPS is also known for its good electrical insulation properties and is often used in electrical and electronic applications where high temperature resistance and good electrical insulation are required. It has a high dielectric strength and a low dielectric constant, making it a good choice for use in high voltage applications.

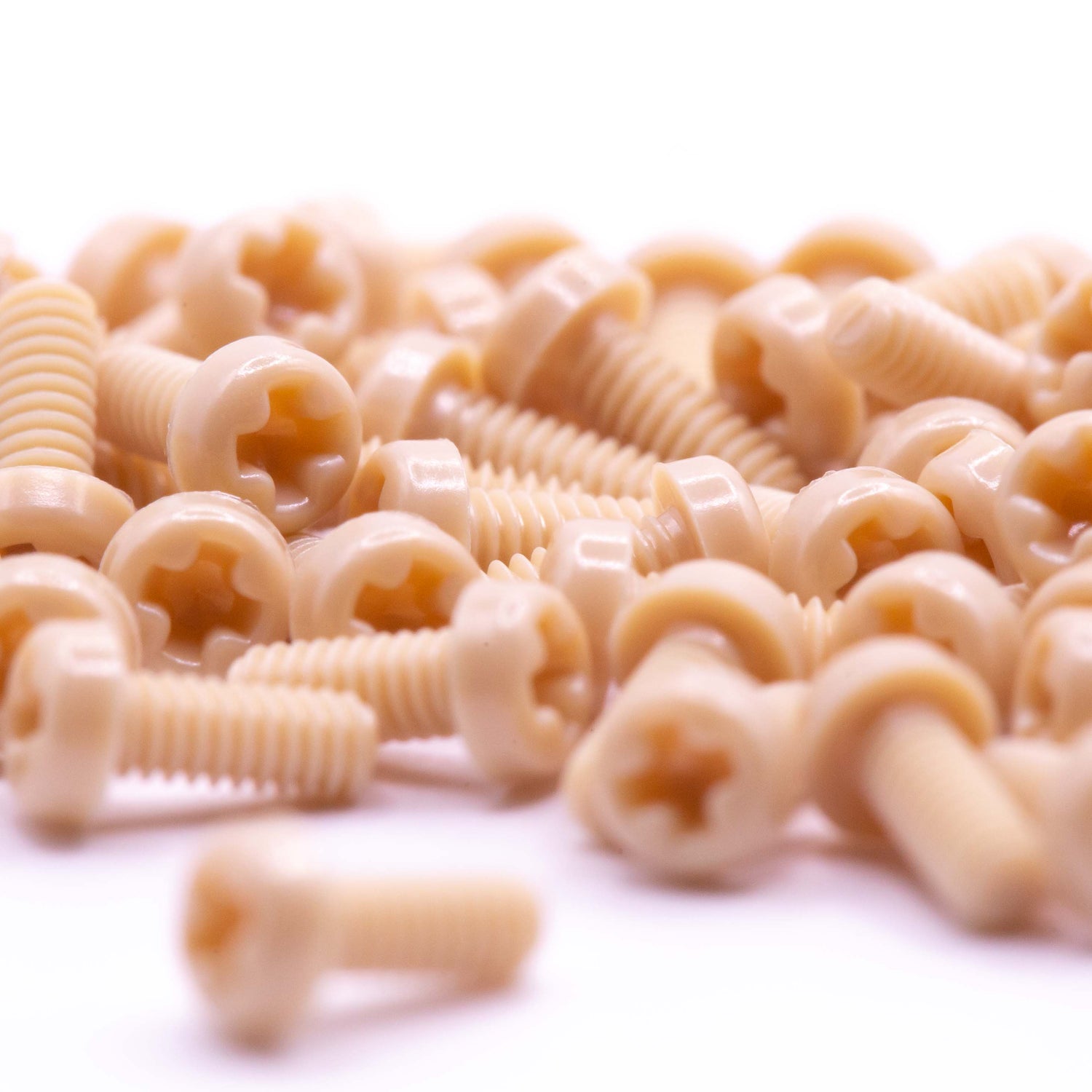

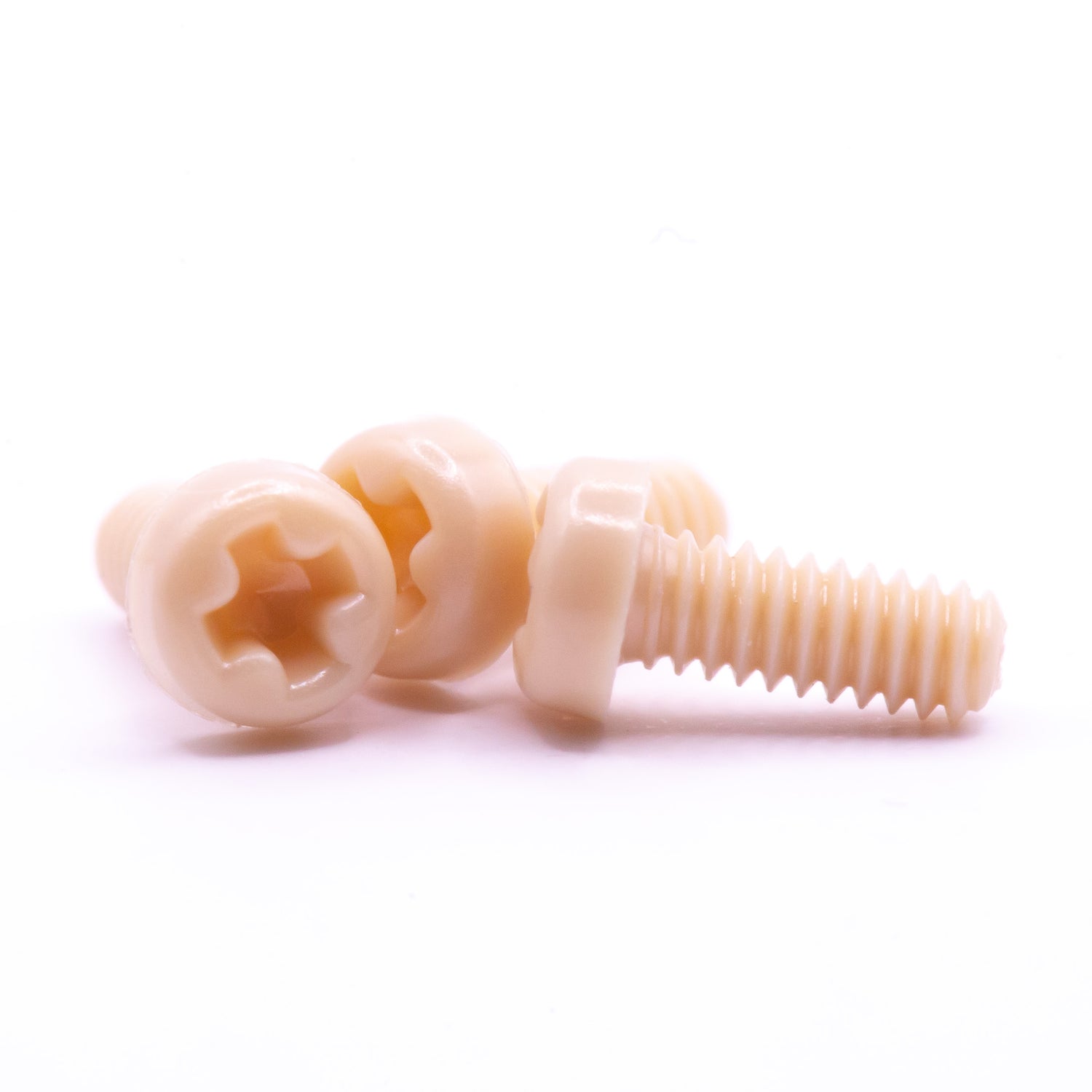

PPS Screws, Nuts and Flat Washers
High Performance Polymer offer a range of PPS Fasteners. Find out more by selecting a product below:
PPS Applications
-
Aerospace industry:
PPS is often used in the aerospace industry for structural components, such as spars, ribs, and bulkheads, where high strength and stiffness are required. It is also used in the production of fuel cells and other electrical components, due to its good electrical insulation properties.
-
Automotive industry:
PPS is used in the automotive industry for structural components, such as engine parts, transmission parts, and drivetrain components, where high strength and stiffness are required. It is also used in the production of fuel cells and other electrical components, due to its good electrical insulation properties.
-
Electronics industry:
PPS is used in the electronics industry for a variety of applications, including the production of connectors, switches, and other electrical components. It is also used in the production of printed circuit boards and other electronic components, due to its good electrical insulation properties.
-
Medical industry:
PPS is used in the medical industry for the production of medical devices, such as pacemakers and defibrillators, due to its good electrical insulation properties and high temperature resistance.
-
Food processing industry:
PPS is used in the food processing industry for the production of food processing equipment, such as conveyor belts and other components, due to its excellent chemical resistance and high temperature resistance.
Summarised Properties of PPS:
-
Exceptional tensile strength - 185 MPa Standard.
Exceptional dimensional stability - Even at high temperatures (200°).
Ideal alternative to PEEK - Encompasses characteristics similar to RENY and PEEK.
Excellent weight to strength ratio - Specific gravity (1.66). -
- High operation temperature up to 200°C
- Ultra low weight
- Flame resistance (V-0)
- Abrasion resistance
- Hydrolysis resistance
-
- Non-Magnetic
- Low thermal conductivity
- Non-Corrosive
PPS Datasheet
Our glass-filled PPS components use high grade fully traceable PPS. View our data sheet for more info.
PPS Summary
PPS is a high performance polymer that is known for its excellent mechanical and thermal properties, as well as its good chemical resistance and electrical insulation properties. It is a versatile material that is used in a wide range of applications where high strength, high temperature resistance, and good
